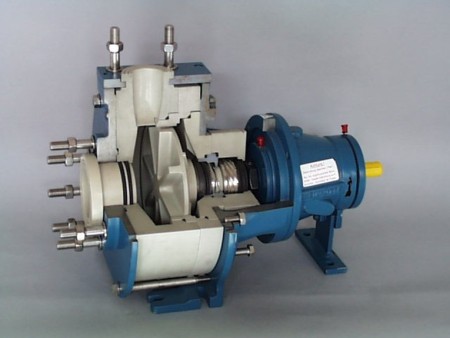

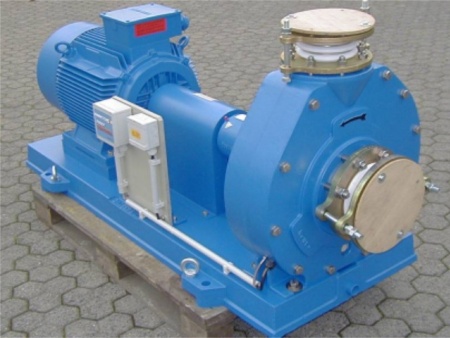

RCNKu重載塑料泵

重載塑料泵High performance design

Dimensions and performance range to DIN EN 22858 (ISO 2858) 設計規(guī)范

Standard size range with additional sizes:    DN 80 - DN 400 泵出口直徑

Performance range: 特性范圍   Q < 1.500 m3/h (6.600 US. GPM)
                                                         H < 90 m (295 ft)

Shaft sealing: single and double mechanical seal - also available with stationary outboard sealing ring

密封:單機械或雙機械或靜密封

Materials材料: PP, PE, PVDF, volute casing with robust metal armour of GGG 40.3

球墨鑄鐵外殼內置PP,PE,PVDF
